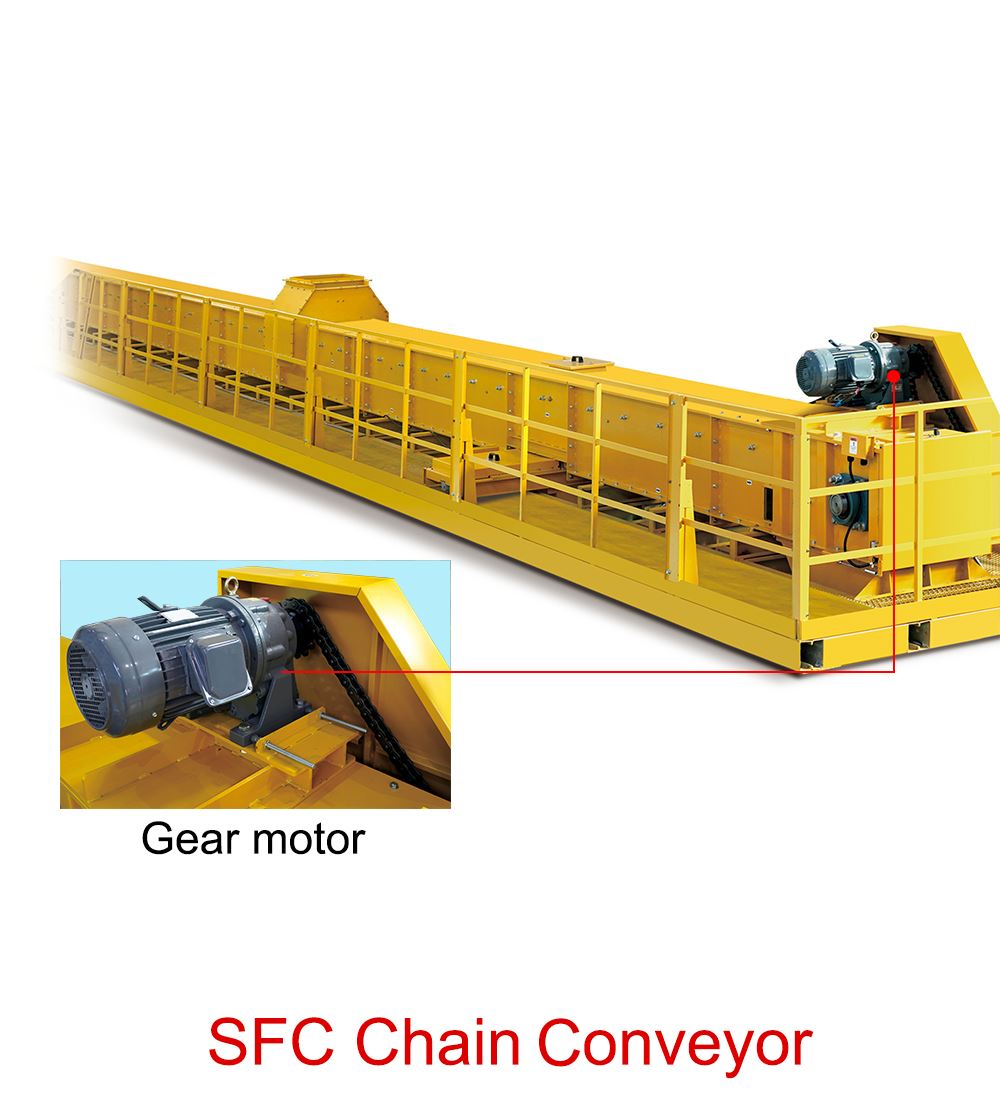

SFC Chain Conveyor
•Inlet position and outlet position can be decided according to your needs.
•Designed for transporting seeds without residual and mixing of varieties; the soft scrapers keep damage at a minimum.
•Closed-type conveyor keeps dust inside. Durable, efficient and low in noise.
Specifications

Model		SFC - 30
Capacity (Paddy) Approx. ton/hr		30
Dimension	Length m (A)	<19.9	20~29.9
	Width mm (B)	980
	Height mm (C)	880
Net weight Approx. kg		1,380 *Height=19,054mm



Model		SFC - 50
Capacity (Paddy) Approx. ton/hr		50
Dimension	Length m (A)	<9.9	10 ~ 19.9	20 ~ 29.9	30 ~ 44.9	45 ~ 55
	Width mm (B)	1,110
	Height mm (C)	990
Net weight Approx. kg		2,440 *Height = 20,734mm



Model		SFC - 120
Capacity (Paddy) Approx. ton/hr		120
Dimension	Length m (A)	17~20.9	21 ~ 30.9	31 ~ 40.9	41 ~ 50.9	51 ~ 61
	Width mm (B)	1,795
	Height mm (C)	1,445
Net weight Approx. kg		5,400 *Height = 21,090mm



Model		SFC - 150
Capacity (Paddy) Approx. ton/hr		150
Dimension	Length m (A)	<17	17 ~ 25.9	26 ~ 33.9	34 ~ 42.9	43 ~ 51
	Width mm (B)	1,795
	Height mm (C)	1,445
Net weight Approx. kg		5,400 *Height = 21,090mm



Dimension (mm)

?The specification and graph is for reference only. Actual specification of SUNCUE product shall be based on the Sales Confirmation which customers sign and delivered products.
?Stand, maintenance platform, inlet and discharge hopper and spare pipe are optional.
?The transmission volume listed above is based on the: Paddy test weight: 1 liter=560 gram above. Wheat test weight: 1 liter=680 gram above. Maize test weight: 1 liter=690 gram above.
